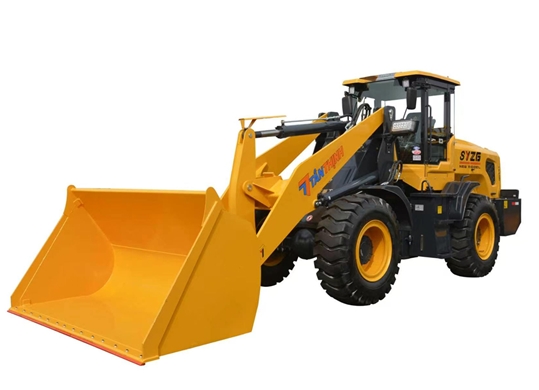

Brang SYZG T950G
| T950G | ||
| RATED LOAD CAPACITY (kg) | 2500 | |
| RATED BUCKET CAPACITY (m3) | 1.6m³ | |
| MAX. GRADE ABILITY (º) | 30 | |
| MIN. TURNING RADIUS (mm) | 5730 | |
| MAX. SPEED (km/h) | 20 | |
| MAX. DUMPING ANGLE (º) | 40 | |
| MAX. DUMPING HEIGHT (mm) | 4780 | |
| DUMPING DISTANCE (mm) | 1000 | |
| LIFTING, LOWERING, DUMPING TIME (s) | ≦13 | |
| WHEEL BASE (mm) | 3000 | |
| WHEEL TRACK (mm) | 1700 | |
| CONTROL | Pilot Control | |
| TRANSMISSION TYPE | HYDRAULIC | |
| ENGINE MODEL | WP6G125E22 | |
| ENGINE POWER (kw) | 92 | |
| Hydraulic Pump type | 3125 | |
| Transmission pumy type | CBFC25 | |
| SPEED (r/min) | 2400 | |
| TYRE SIZE (FORWARD , REVERSE) | 17.5-25 | |
| AXLES | TYPE9k | BUB Air brakes ,4wheels brake,and hand brake |
| DRIVING TYPE | FOUR WHEEL DRIVE | |
| DIMENSIONS (mm) | LENGTH | 8150 |
| WIDTH | 2500 | |
| HEIGHT | 3150 | |
| WEIGHT (kg) | 8550 | |
| starting mode | Electric shutdown | |
| Front shelf | Tiger Head/Thickness 3.5mm | |
| radiator | Double layered integrated | |
| axle | Big wheel edge | |
| oil cylinder | Middle cylinder/80 side cylinder/70 | |
