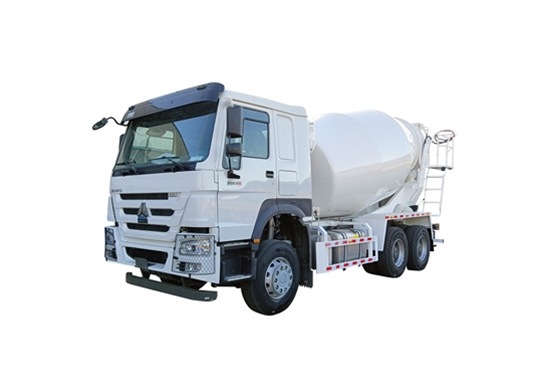

3m³(concrete mixing tank) vehicle assembly parameters

designation：

3M³

Tank material：

Manganese steel alloy

Sub-frame width:

Truck chassis size reservation

Tank thickness：

Q345B .3.75mmm

boundary dimension：

4277*2040*2150

Sub-frame material：

Q235.4mm/80*80

weight

1900

Length of discharge tank

1200mm

Blade material：

Q345B .3.75mmm

Head material：

Q345B.6mm

reduction box：

FXJ-300

cooling system：

Xi xiang12L

oil pump：

Xixiang

motor：

zhenjiang 160

Discharge range：

180°Up, down, left, right adjustment

water tank：

200L

Tank speed

9/min

Discharge rate

＞1m³/min

hydraulic giant

high pressure

water pipe

3m

craftsmanship

Tooling splicing, ring seam, longitudinal seam automatic welding, shot blasting anti-rust treatment

3m³ (concrete mixing tank) vehicle assembly parameters

designation：

6M³

Tank material：

Manganese steel alloy

Sub-frame width:

Truck chassis size reservation

Tank thickness：

Q345B .3.75mmm

boundary dimension：

5460*2180*2260

Sub-frame material：

Q235.4mm/80*80

weight

2600

Length of discharge tank

1200mm

Blade material：

Q345B .3.75mmm

Head material：

Q345B.6mm

reduction box：

FXJ-360

cooling system：

Xi xiang12L

oil pump：

Xixiang

motor：

zhenjiang 200

Discharge range：

180°Up, down, left, right adjustment

water tank：

200L

Tank speed

9/min

Discharge rate

＞1m³/min

hydraulic giant

high pressure

water pipe

3m

craftsmanship

Tooling splicing, ring seam, longitudinal seam automatic welding, shot blasting anti-rust treatment
