PRODUCTS

机型

wheel loader model

单位

bucke t

E36电动装载机

额定载重量

Rated Load Capaci ty

Kg

2000

额定斗容量

Rated Budcet Capaci ty

m³

1.2

斗宽

width of bueket

m

2

整机重量

Weight

Kg

4860

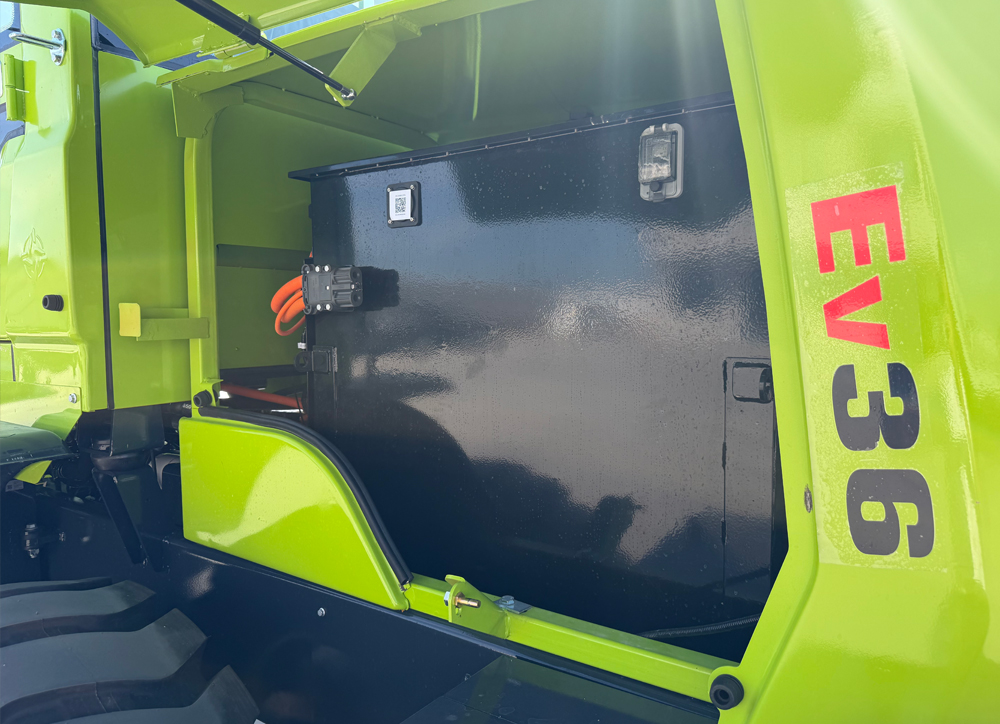

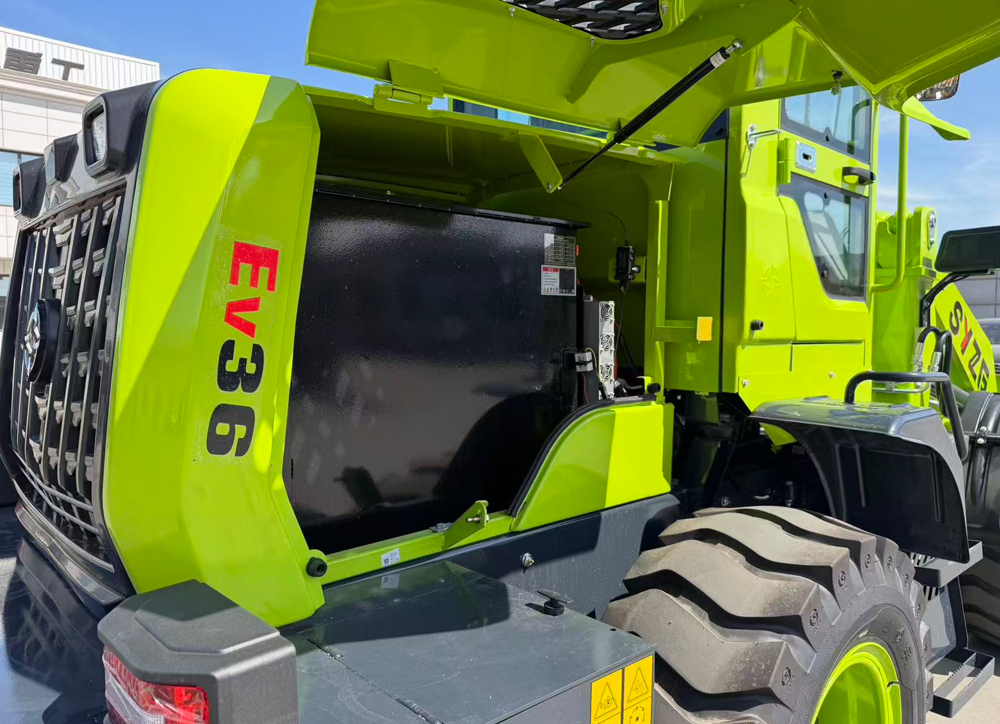

锂电池型号

Lithium battery model

153.6V460AH

锂电池额定电压

Lithium battery rated voltage

V

153.6

锂电池容量

Lithium battery capacity

KWH

70.656

锂电池电量

Lithium battery power

AH

460

锂电池重量

Lithium battery weight

Kg

740

行走电机型号

Walking motor model

KC270HZ016

行走电机额定功率

Walking motor rated power

KW

22

行走电机峰值功率

Walking motor peak power

KW

35

行走电机额定转距

Walking motor rated torque

Nm

65

行走电机最高转速

Walking motor maximum speed

rpm

5000

行走电机额定电压

Walking motor rated voltage

V

153.6

油泵电机型号

Oil pump motor model

KC210HZ026

油泵电机额定功率

Oil pump motor rated power

KW

25

油泵电机峰值功率

Oil pump motor peak power

KW

35

油泵电机额定转距

Oil pump motor rated torque

Nm

75

行走电机最高转速

Walking motor maximum speed

rpm

3600

行走电机额定电压

Walking motor rated voltage

Vdc

153.6

卸载高度

Dumping Height

mm

3500

卸载距离

Dumping Distance

mm

900

最小转弯半径

Min Turning Radius

mm

4500

轴距

Wheel base

mm

2500

轮距

Tread

mm

1580

变速箱型式

Gear box type

DE-15变速箱

外形尺寸

Dimension

mm

6400x2050x2950

轮胎型号

tyre model

16/70-20
